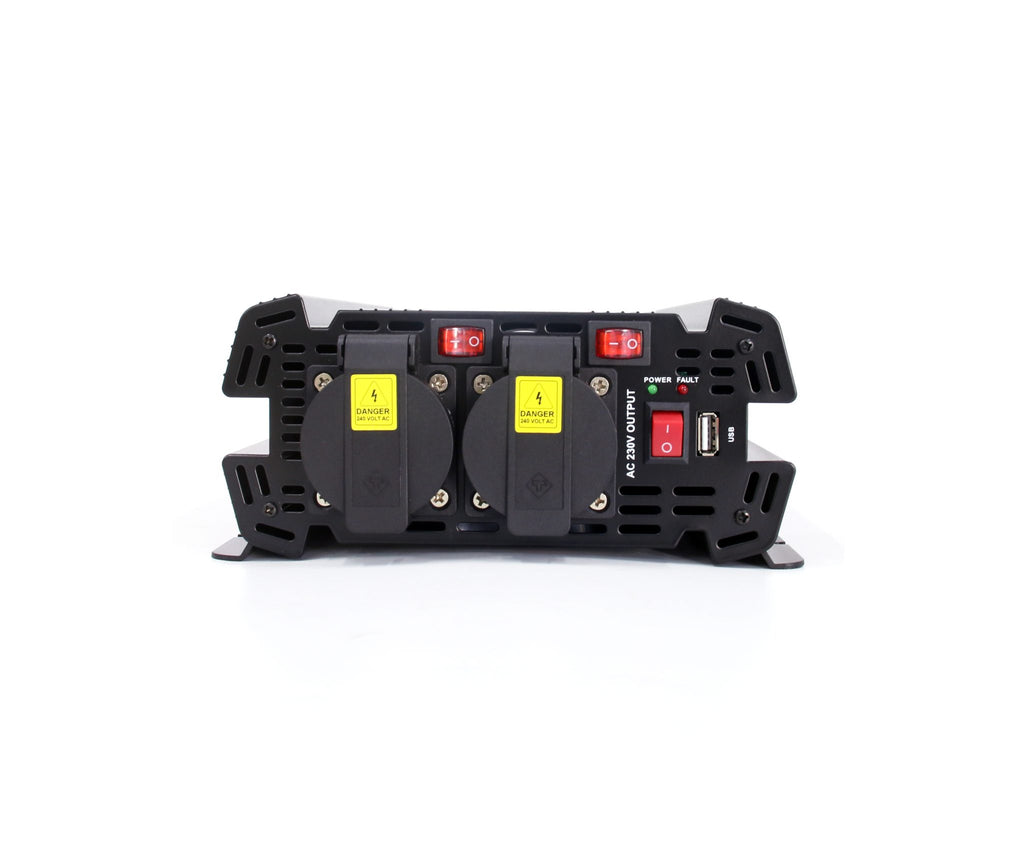

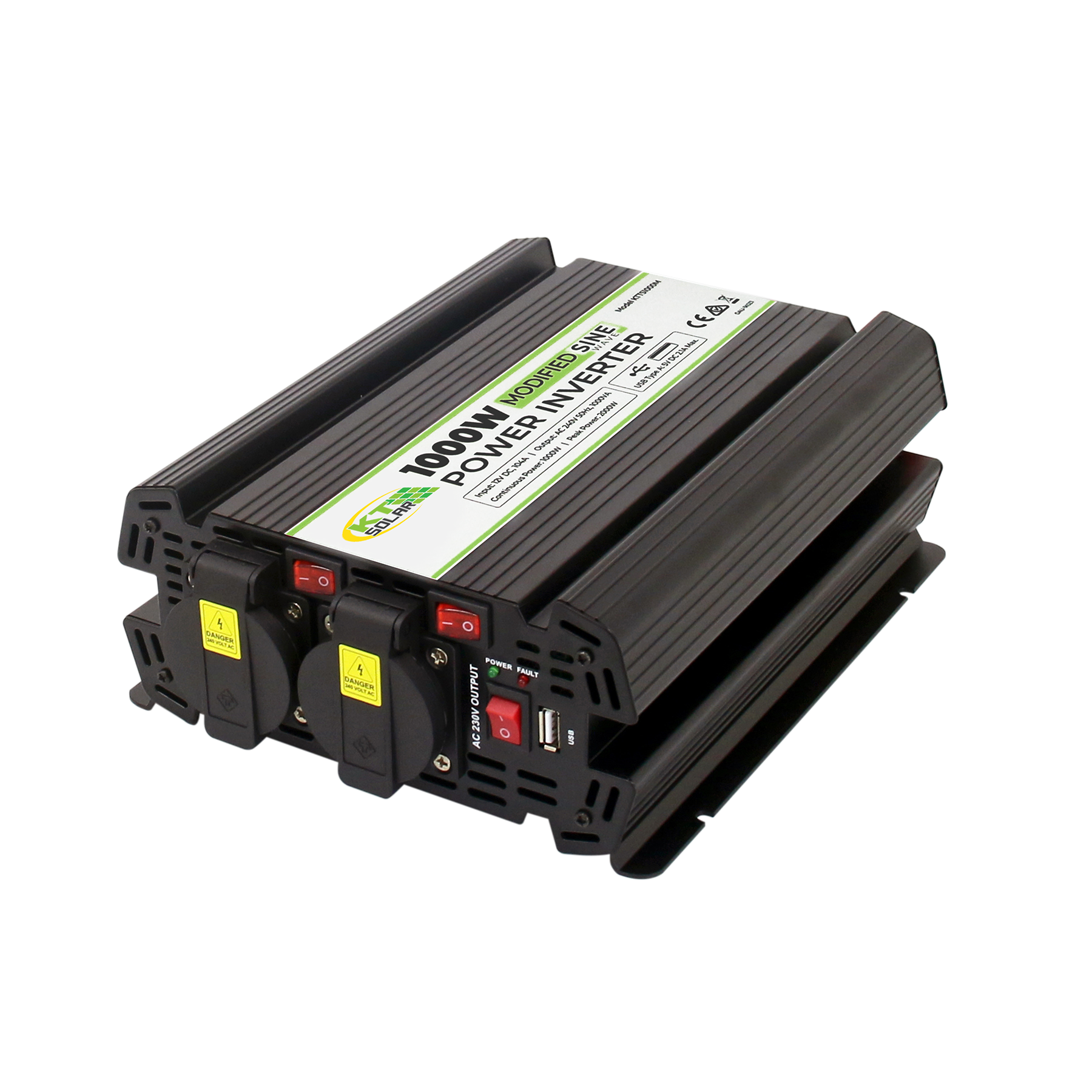

The KT Solar Modified Sine Wave Power Inverters consists of 2 Models, the 600W (KTTS600M) & 1000W (KTTS1000M). Both models feature 2 x 240V Sockets ( AS/NZS 3112) with retracting protective covers, 2 x Illuminating LED ‘On/Off’ rocker switches, power ‘On’ (Green) & Fault (Red) LED indicators and a single USB Type A (5V DC, 2.1A Max) for efficient charging & powering USB devices.

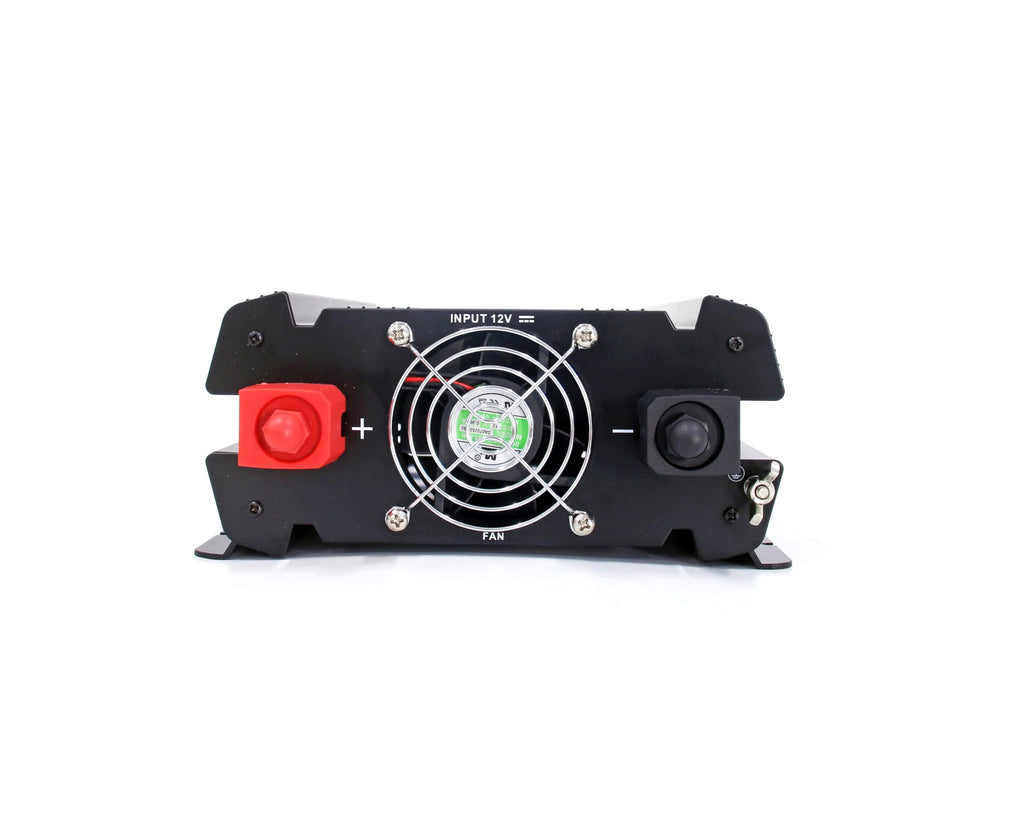

The KT Solar Modified Sine Wave Power Inverters are compact in size, allowing for easy wall or floor mounting in ventilated area’s via mounting hardware included. The internal fan allows for quick cooling to ensure the inverter performance is optimum and operating at a safe temperature.
Each inverter boasts 5 Safety Protection features:
– Input Over Voltage Protection – Over Load Protection – Over Temperature Protection – Output Short Circuit Protection – Reverse Polarity Protection
Key Features: • Modified Sine Wave Technology • Converts DC Voltage to AC Voltage • Easily power 240V devices without mains access • 5 Innovative safety protection features • 240V socket covers for safety protection • Suitable for use with 12V deep cycle batteries
Specifications: • Input: DC 12V, 104A • AC Output: 240V AC 50Hz, 1000VA • Single USB Output: 5V DC, 2.1A Max • Output Power: 1000W • Peak Power: 2000W • Low Battery Alarm: DC 10.2 – 10.8V • Low Battery Shutdown: DC 9.2 – 9.8V • Thermal Shutdown: 60+5oC • Replacement Fuses: 40A / 32V x 2 • Inverter Classification: (EPB) Equipotentially Bonded Inverter
Certifications: • Inverter AS/NZS 4763:2011 • AU Socket AS/NZS 3112 • USB IEC 62368-1 • EMC IEC 61000.6.4:2012
