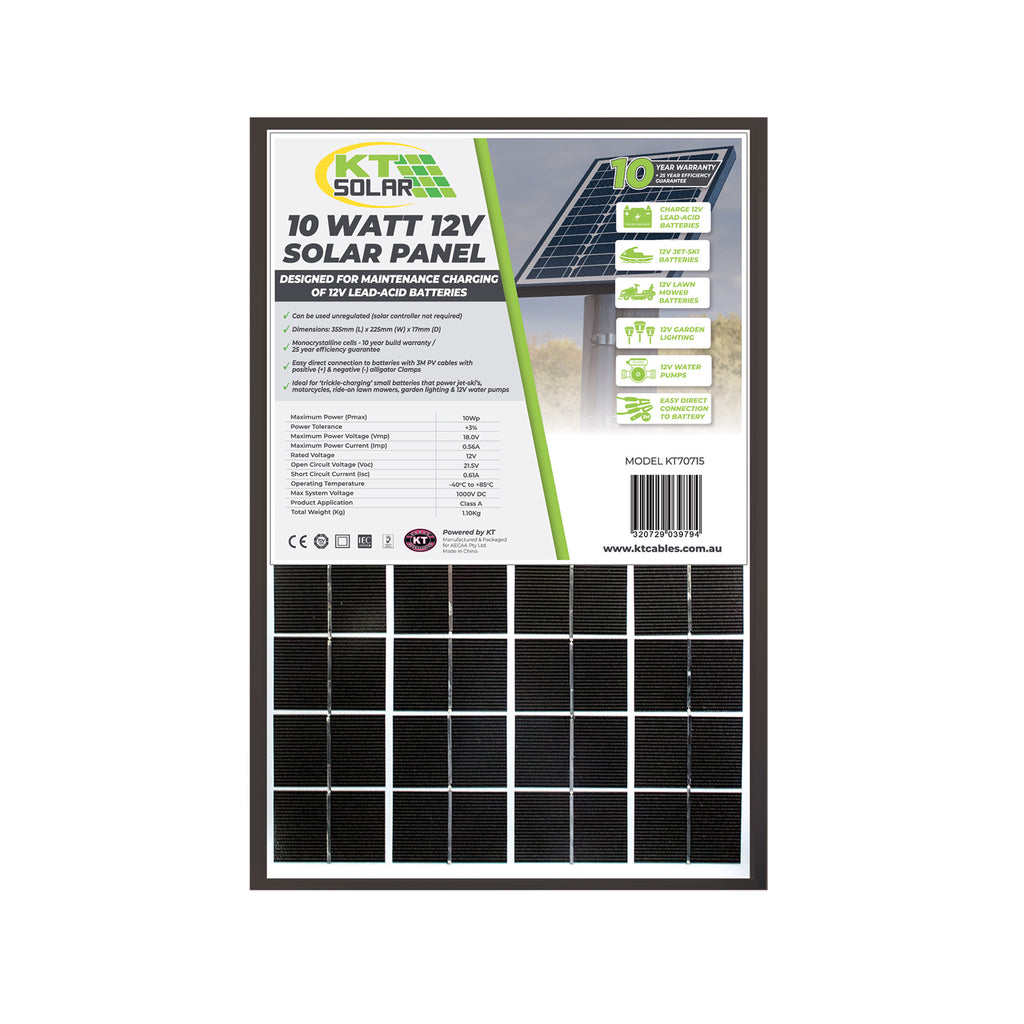

10 Watt, 12V Single Cell Monocrystalline Solar Panel

10 Watt, 12V Single Cell Monocrystalline Solar Panel

SKU:KT70715

Designed for maintenance charging (trickle-charging) of 12V lead-acid batteries that power garden lighting & 12V water pumps, jet-ski batteries, moped batteries, motorcycle batteries & lawn mower batteries.

Can be used unregulated (without solar charge controller).

Easy direct connection to batteries with 3M PV cables with positive ( + ) & negative ( – ) alligator clamps.

Specifications
Power Tolerance+3%
Maximum Power (Pmax)10Wp
Maximum Power Voltage (Vmp)18.0V
Maximum Power Current (Imp)0.56A
Rated Voltage12V
Open Circuit Voltage (Voc)21.5V
Short Circuit Current (Isc)0.61A
Operating Temperature-40°C to +85°C
Product ApplicationClass A
Max System Voltage1000V DC
Specifications
Power Tolerance+3%
Maximum Power (Pmax)10Wp
Maximum Power Voltage (Vmp)18.0V
Maximum Power Current (Imp)0.56A
Rated Voltage12V
Open Circuit Voltage (Voc)21.5V
Short Circuit Current (Isc)0.61A
Operating Temperature-40°C to +85°C
Product ApplicationClass A
Max System Voltage1000V DC
View full details
  • Dimensions & Weight

    Dimensions (Height): 355mm

    Dimensions (Length): 225mm

    Dimensions (Depth): 17mm

    Panel Weight: 1.10Kg

  • Warranty & Guarantees:

    • 10 Year Warranty on Manufacture & Build
    • 25 Year Efficiency Guarantee
    • National Warranty Programme
