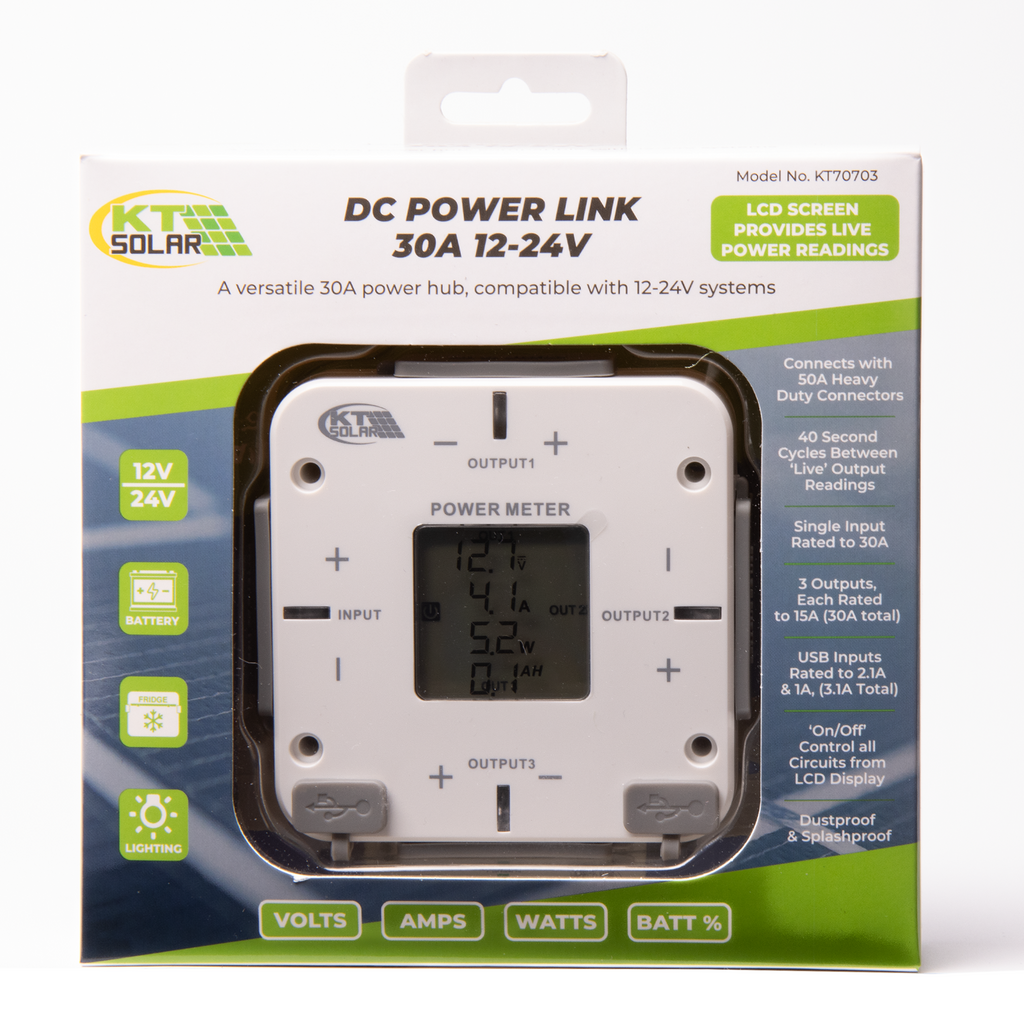

30Amp, 4 Way DC Powerlink with Display Screen

30Amp, 4 Way DC Powerlink with Display Screen

SKU:KT70703

Provides live Amps, Amp Hours, Voltage, Watts and Battery Percentage readings in 40 second intervals.

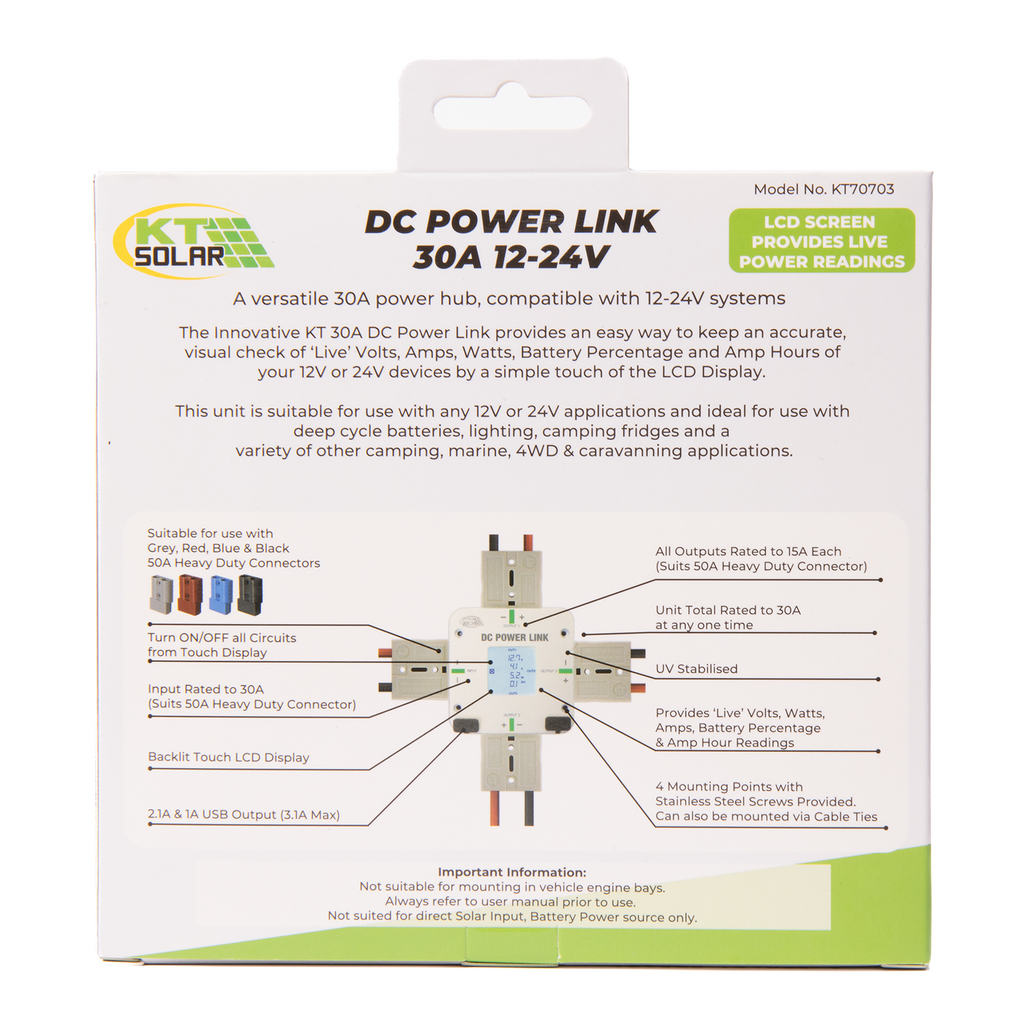

The KT Solar 30A DC Power Link with Display Screen is essentially a versatile ‘power hub’,
compatible with 12V – 24V systems and ability to view ‘live’ Amps, Amp Hours, Watts, Volts and Battery Percentage readings of connected devices. The 4 Way DC Power Link with Display, has omni-directional capability, rated to 30Amps max combined output. The unit supports up to 3 individual inputs whilst connected to a battery or 12V power source.

Ideal for use with deep cycle batteries, lighting, portable fridges, and a variety of other camping, 4WD or Caravanning applications. The DC Power Link can essentially be thought of as a convenient recreational 30A Power Board in a omni-directional configuration, a unique & innovative design by KT Solar.

Mounting easily, using the mounting hardware included, the KT Solar Inline Power Meter is ideal for mounting in cargo areas of vehicles, or can be secured with cable ties through the mounting holes. The LED Indicators on the unit, indicate an active circuit when illuminated green, and inactive when illuminated red for easy circuit activity identification.

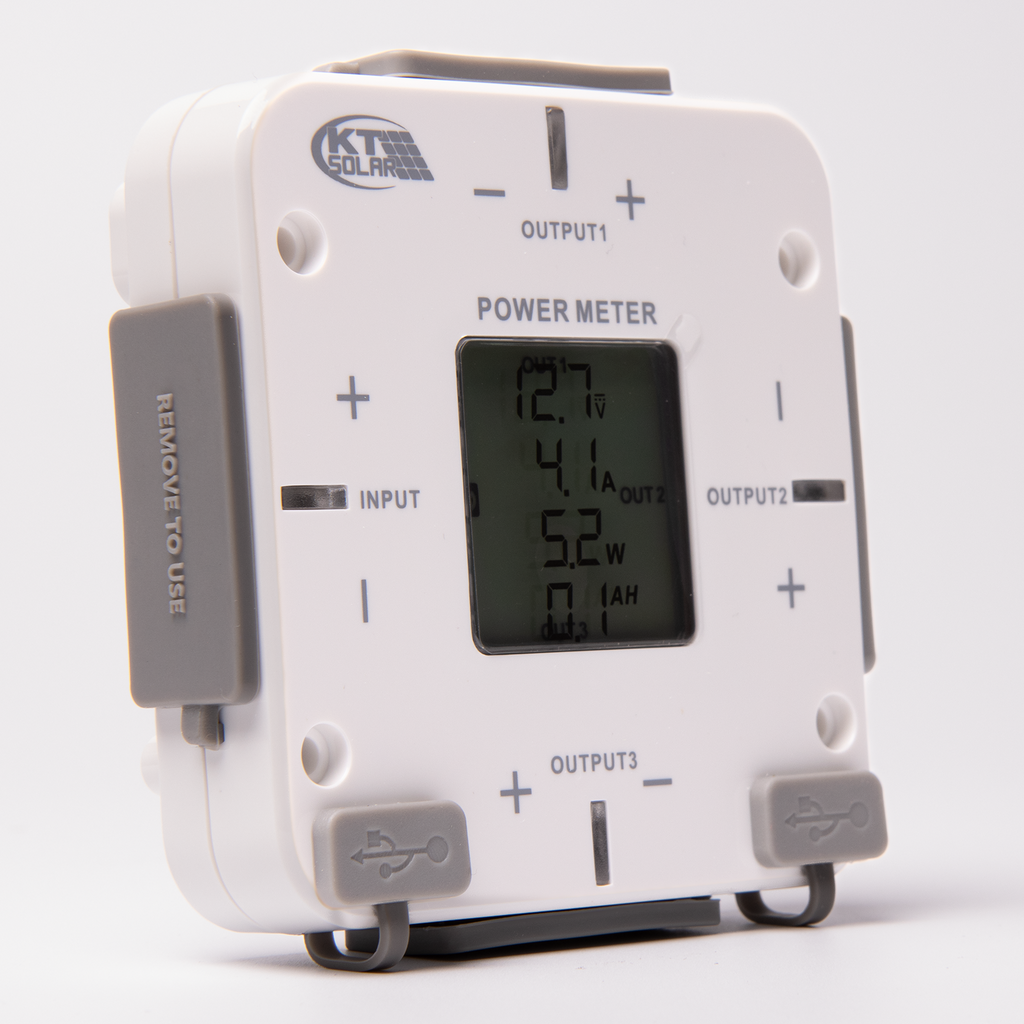

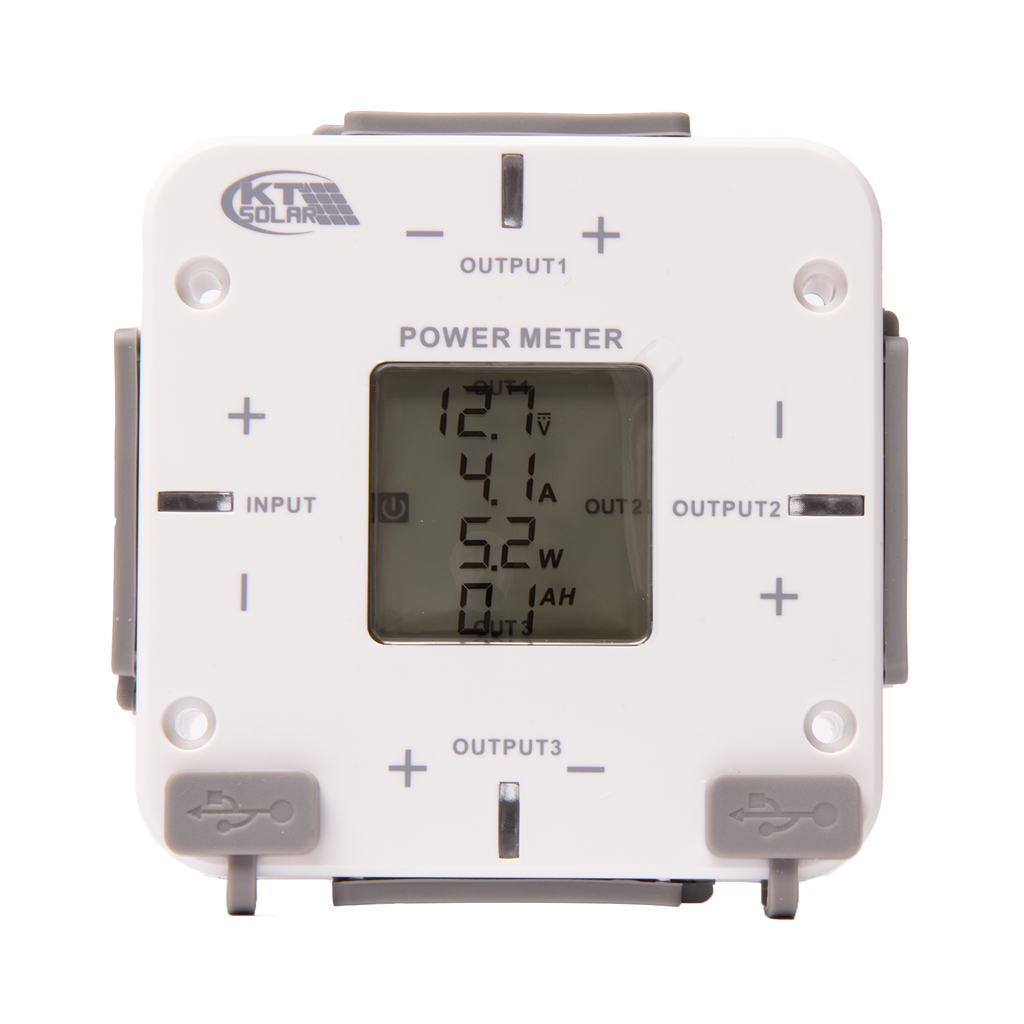

The display screen is back-lit for easy readings of devices in low-light situations, and cycles through readings at 40 second intervals.

Key Features:
• Uniquely designed & innovated by KT Solar
• Suits 50A HD Connectors (Grey, Black, Red & Blue)
• Turn on/off all circuits from display screen power icon.
• 40 Second Cycles of Amps, Amp Hours, Voltage, Watts and Battery Percentage readings via display.
• Back-lit display for easy-reading.
• LED indicates live circuit once input has been connected.
• Single input rated to 30A (suits 50A heavy duty connector)
• 2.1A & 1A USB output (3.1A Max)
• All outputs rated to 15A each (30A total)
• UV stabilised polycarbonate housing

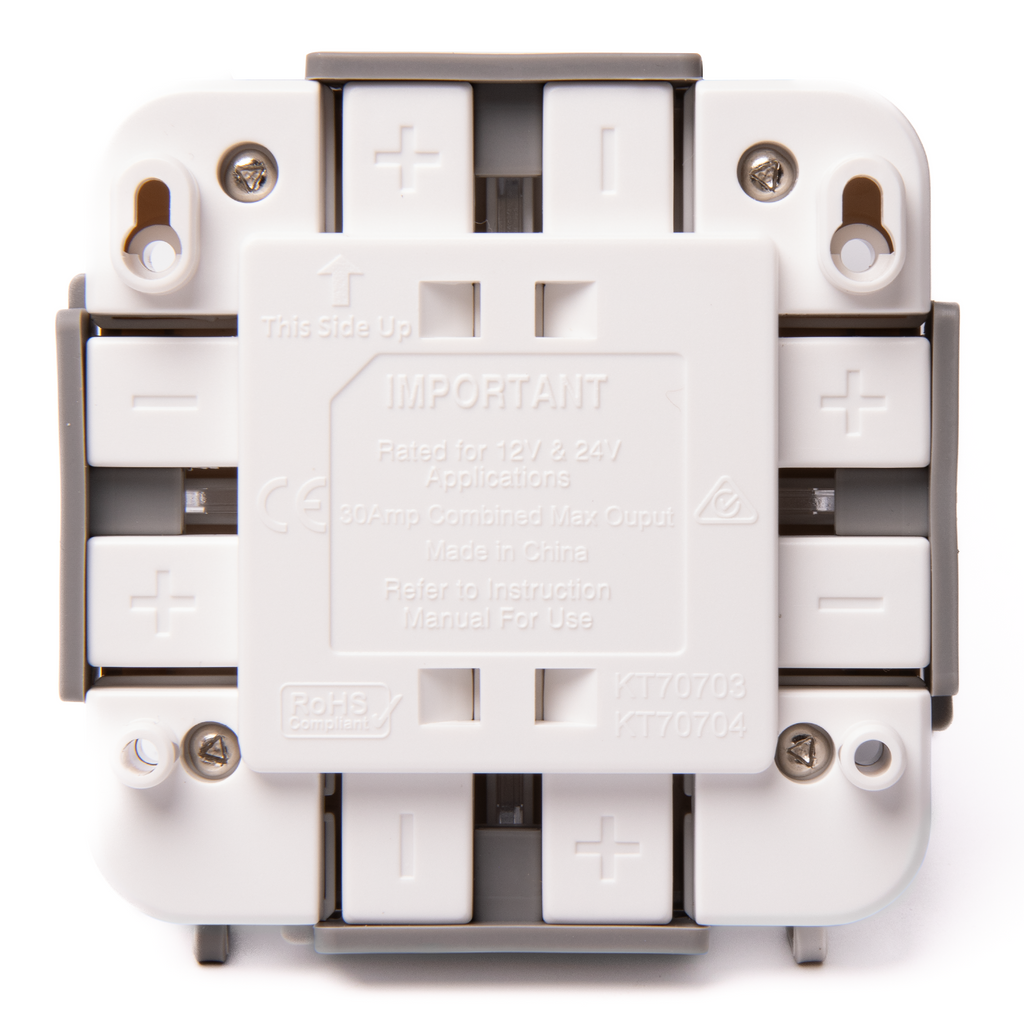

• 4 securing points (hardware included)

Key Applications:
• 4WD Offroad / Camping
• Commercial / Trade vehicles
• Caravan, RV & Motorhome

Specifications:
• Suitable for use in temperatures of -30°C to 80°C (Not suitable for mounting in engine bays).
• Suitable for use with 12V/24V & 48V appliances
• Not suited for direct Solar Input, Battery Power source only.
• Always refer to the user manual prior to use. If using this product to connect multiple 12V solar panels, a solar controller must be placed between the DC Power Link and the battery.
• A single solar controller should be used even when connecting multiple solar panels to the DC Power Link.
