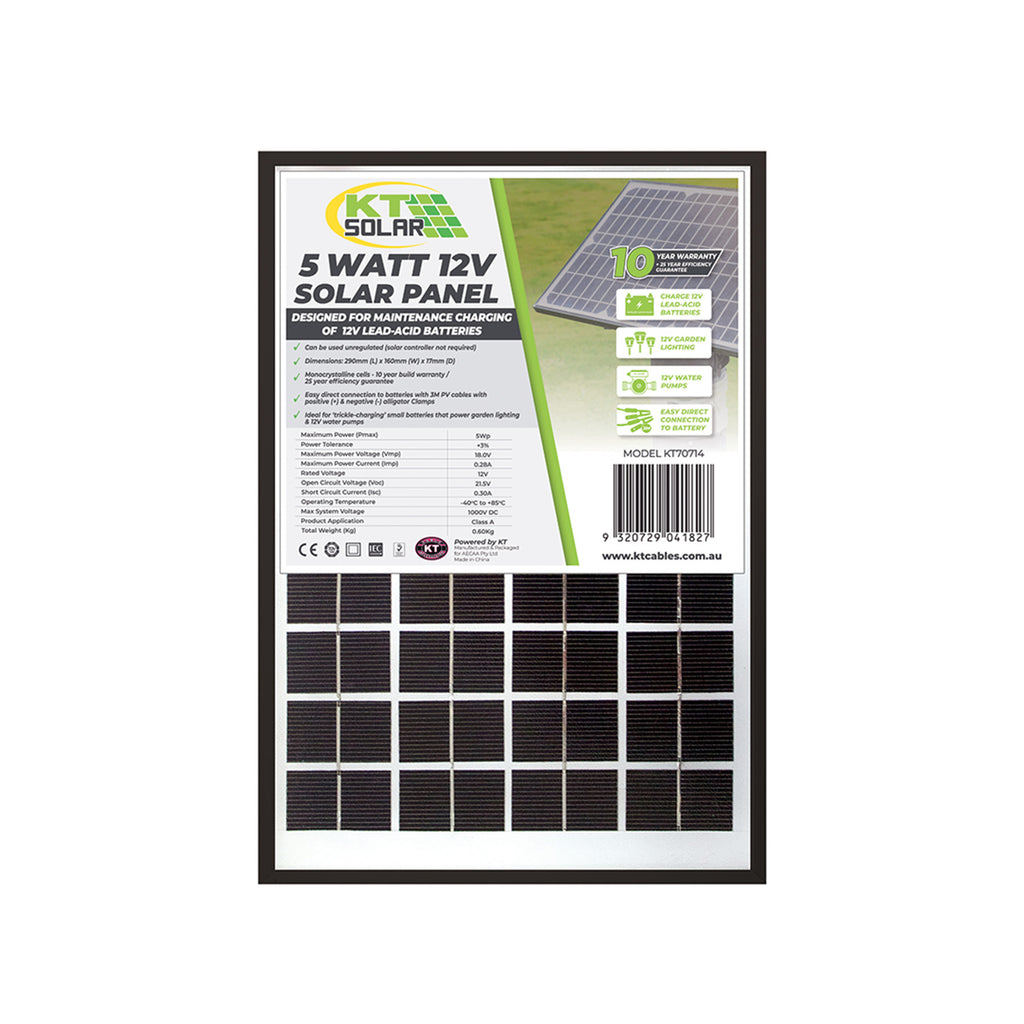

5 Watt, 12V Single Cell Monocrystalline Solar Panel
KT70714
$25.00 AUD
Pickup currently not available

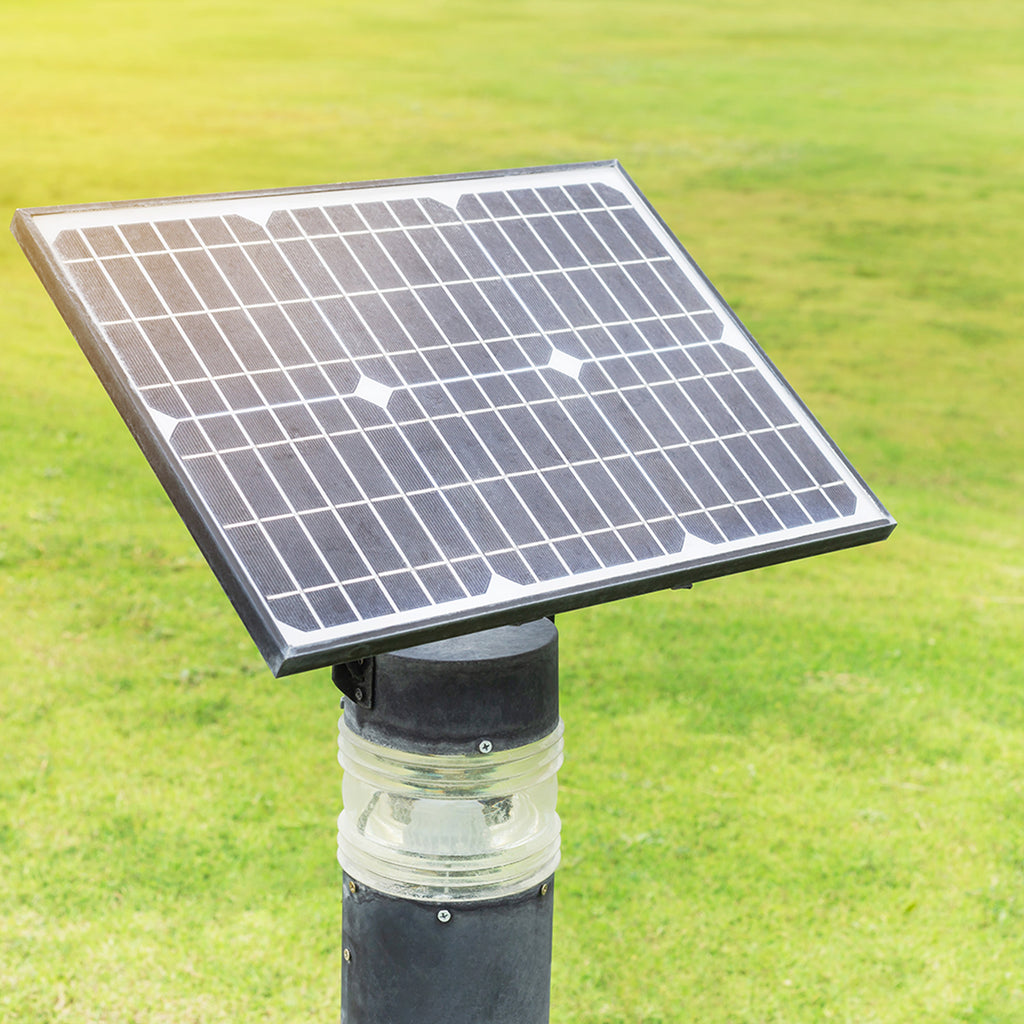

The KT 5 Watt, 12V Single Cell Monocrystalline Solar Panel (Model No. KT70714) is ideal for a variety of home applications including trickle charging small batteries, charging small batteries that power garden lighting and surveillance cameras.
Features:
- Designed for maintenance charging (trickle-charging) of 12V lead acid batteries that power garden lighting & 12V water pumps
- Can be used unregulated (without solar controller)

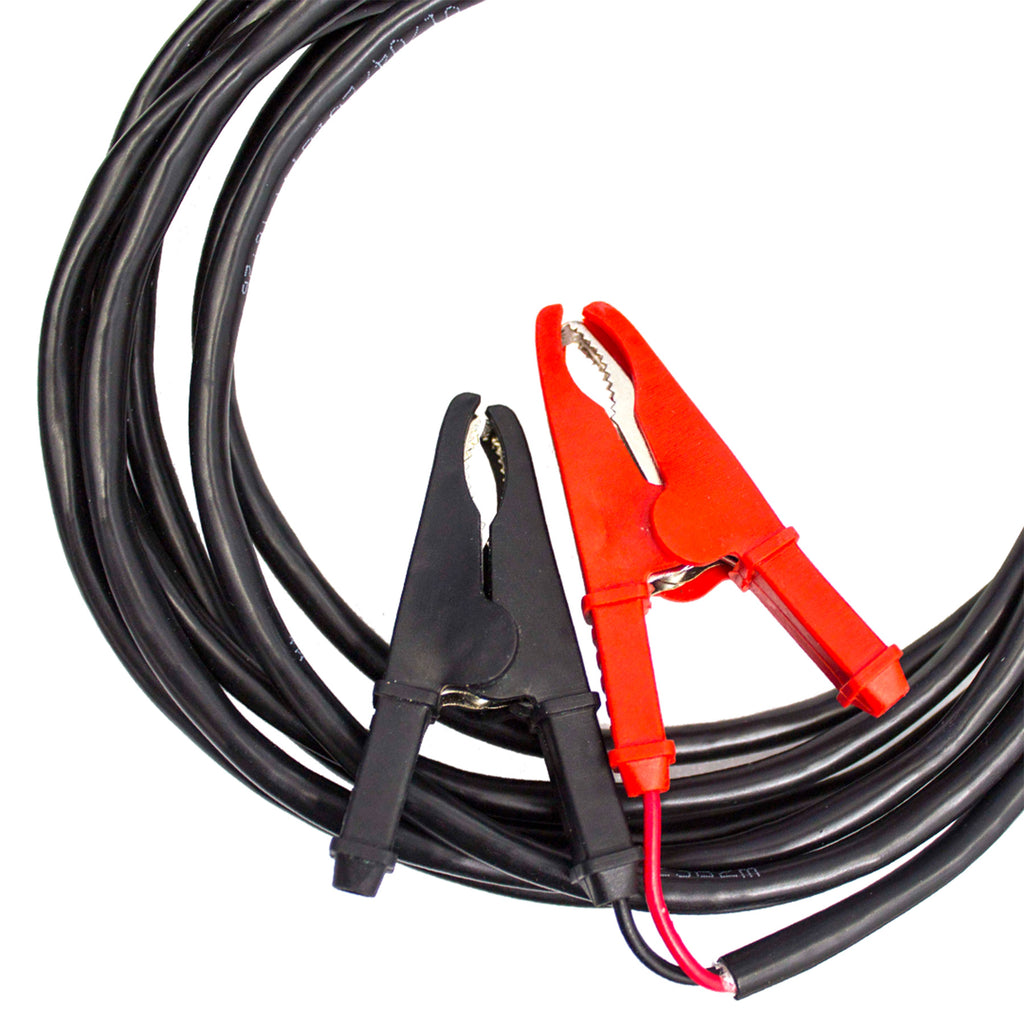

- Direct connection to batteries with 3M PV cables with positive (+) & negative (-) alligator clamps
| Specifications | |
| Power Tolerance | +3% |
| Maximum Power (Pmax) | 5Wp |
| Maximum Power Voltage [Vmp] | 18.0V |
| Maximum Power Current (Imp) | 0.28A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 21.5V |
| Short Circuit Current (Isc) | 0.30A |
| Operating Temperature | -40°C to +85°C |
| Product Application | Class A |
| Max System Voltage | 1000V DC |

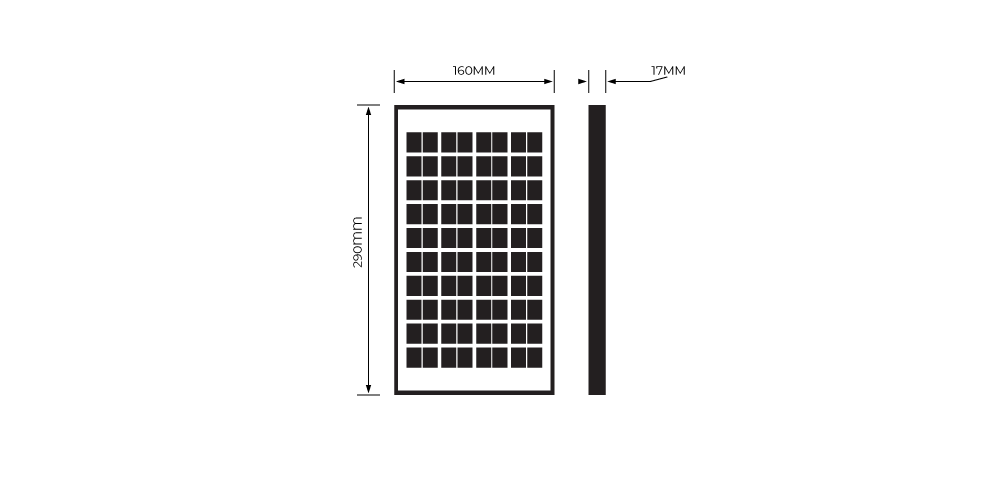

Dimensions & Weight:
- Dimensions (Height): 290mm
- Dimensions (Length): 160mm
- Dimensions (Depth): 17mm
- Panel Weight: 0.60Kg
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Program
