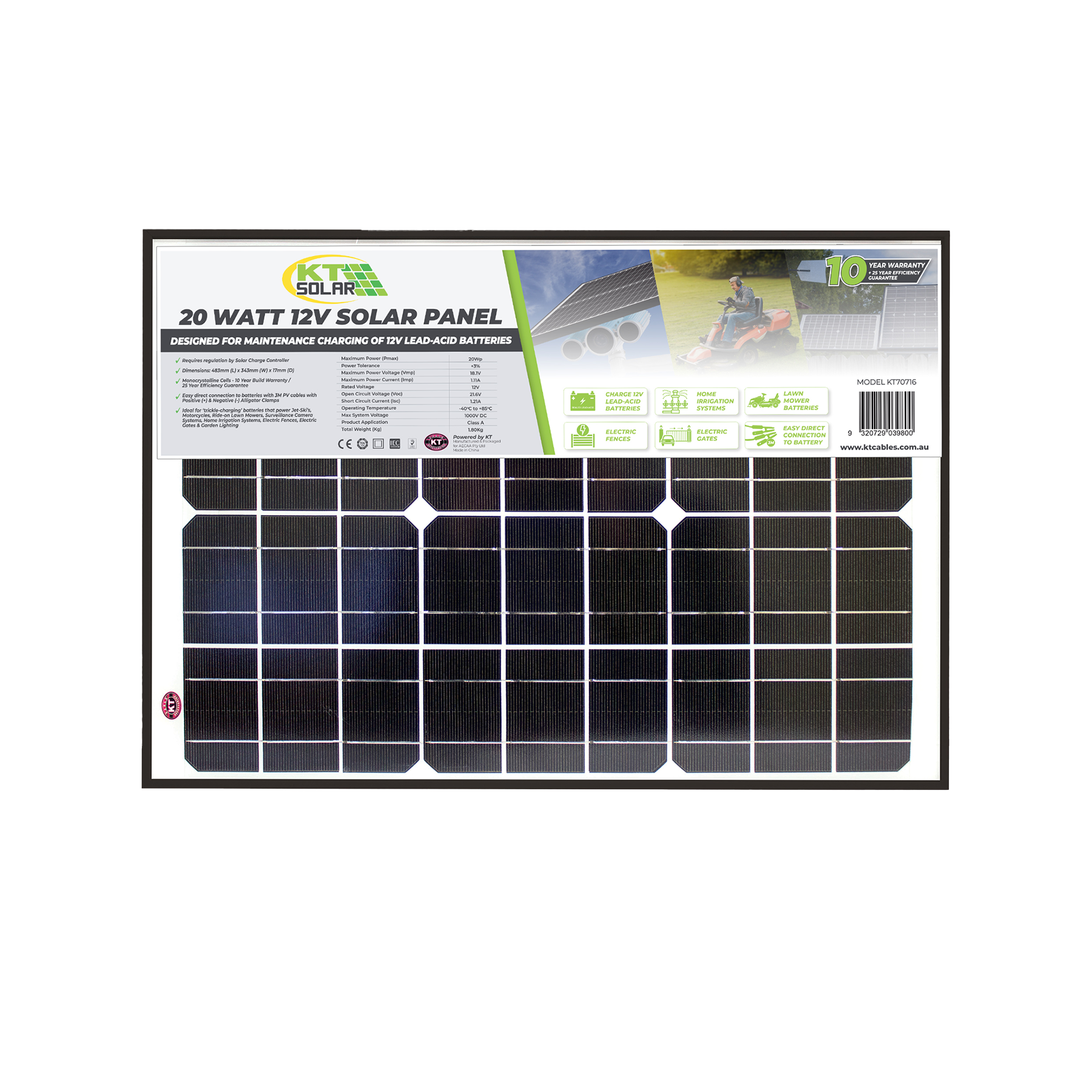

20 Watt, 12V Single Cell Monocrystalline Solar Panel
KT70716
$69.00 AUD
Pickup currently not available

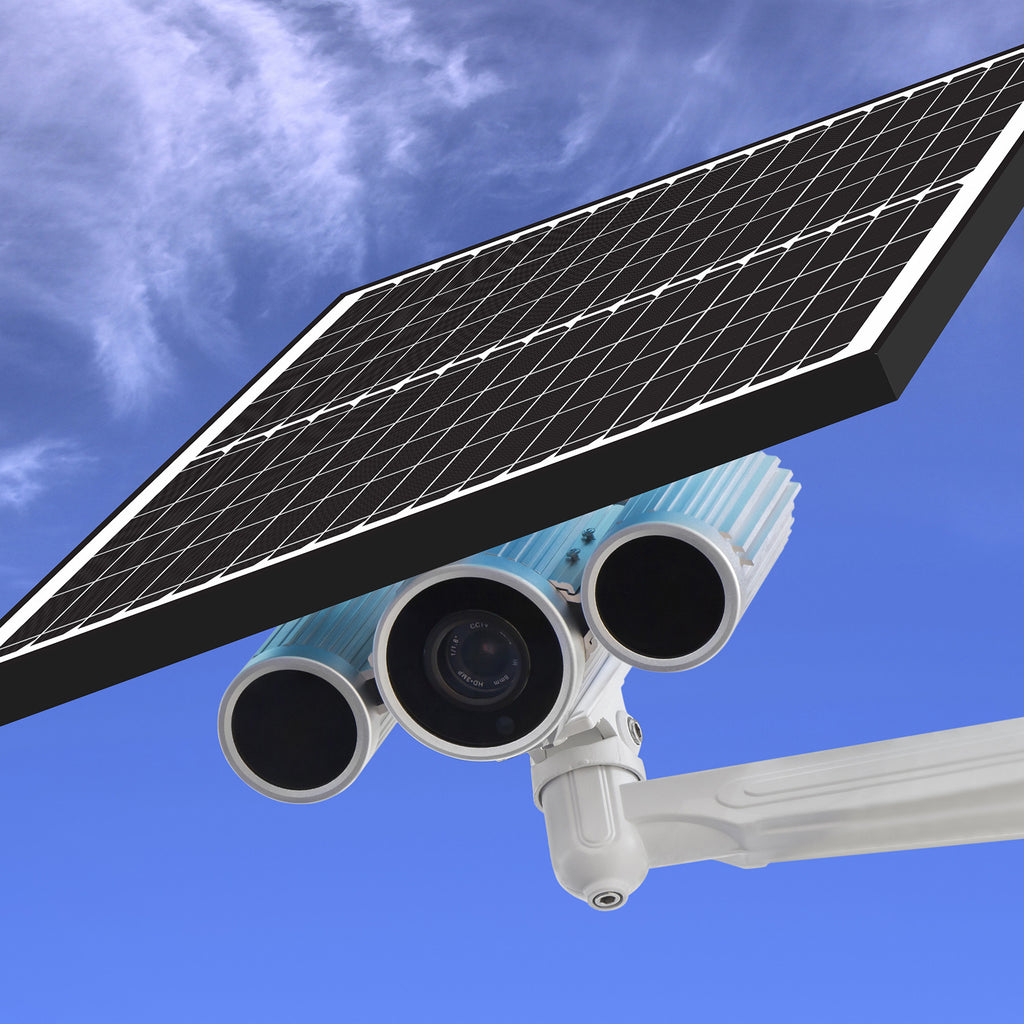

Designed for maintenance charging (trickle-charging) 12V lead-acid batteries that power jet-ski’s, motorcycles, ride-on lawn mowers, surveillance camera systems, home irrigation systems, electric fences, electric gates and garden lighting.
Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70755 – 8 Amp PWM Solar Charge Controller.
Easy direct connection to batteries with 3M PV cables with positive
( + ) & negative ( – ) alligator clamps.
Features:
- Designed for maintenance charging (trickle-charging) of 12V lead acid batteries that power jet-skis, motorcycles, ride-on lawn mowers, surveillance camera systems, home irrigation systems, electric fences, electric gates & garden lighting
- Requires regulation by solar charge controller
- Easy direct connection to batteries with 3M PV cables with positive (+) & negative (-) alligator clamps
| Specifications | |
| Power Tolerance | +3% |
| Maximum Power (Pmax) | 20Wp |
| Maximum Power Voltage (Vmp) | 18.1V |
| Maximum Power Current (Imp) | 1.11A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 21.6V |
| Short Circuit Current (Isc) | 1.21A |
| Operating Temperature | -40°C to +85°C |
| Product Application | Class A |
| Max System Voltage | 1000V DC |

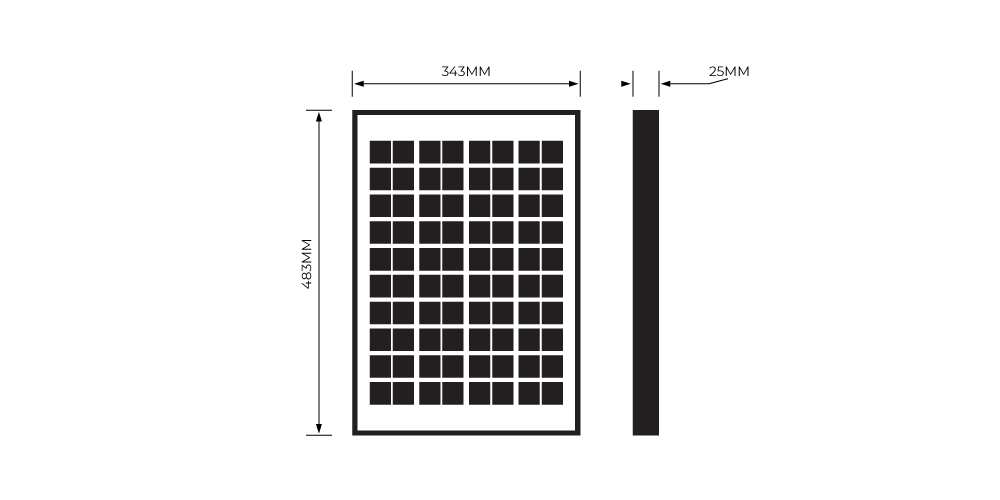

Dimensions & Weight:
- Dimensions (Height): 483mm
- Dimensions (Length): 343mm
- Dimensions (Depth): 25mm
- Panel Weight: 1.80Kg
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Program
