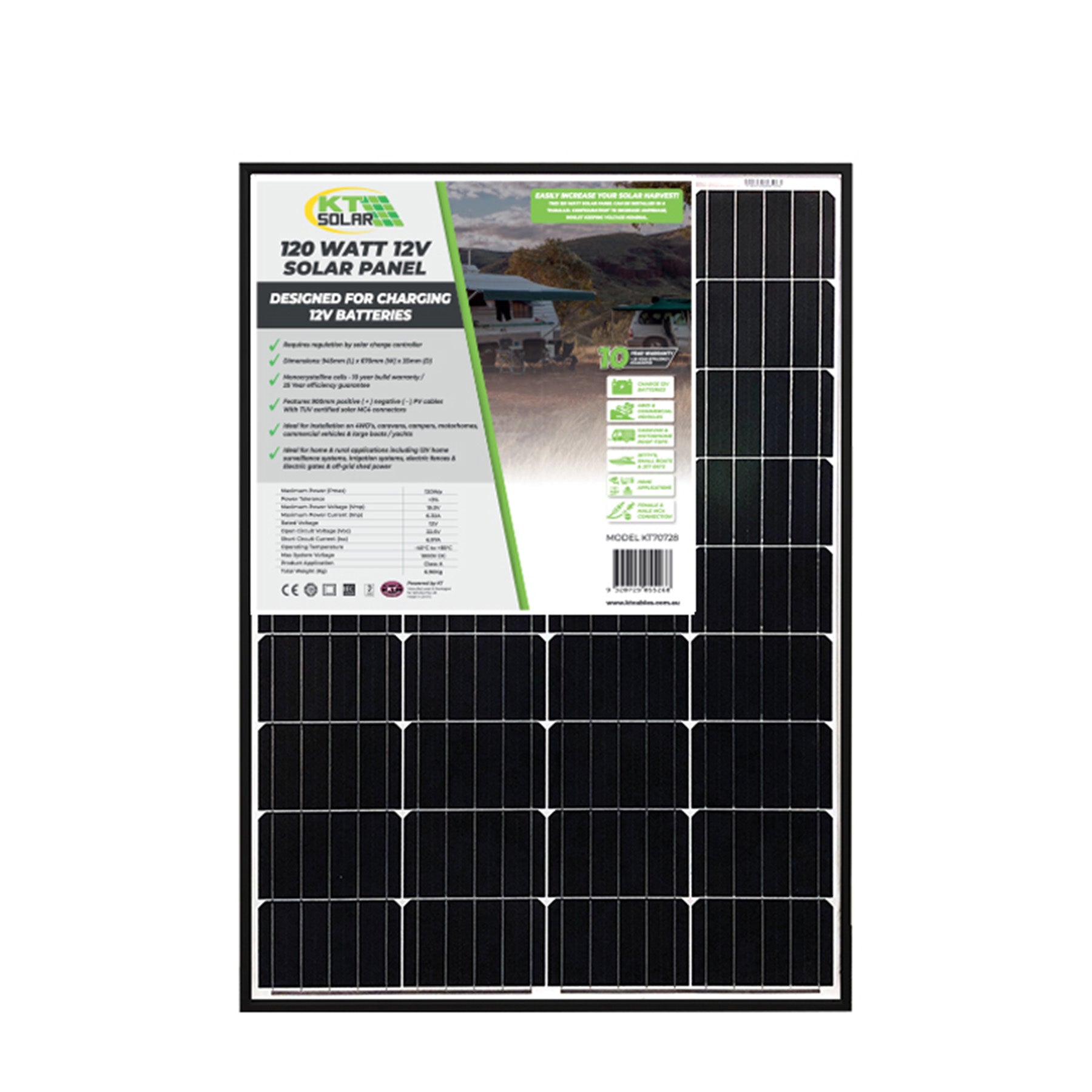

120 Watt, 12V Single Cell Monocrystalline Solar Panel
KT70728
$199.00 AUD
Pickup currently not available

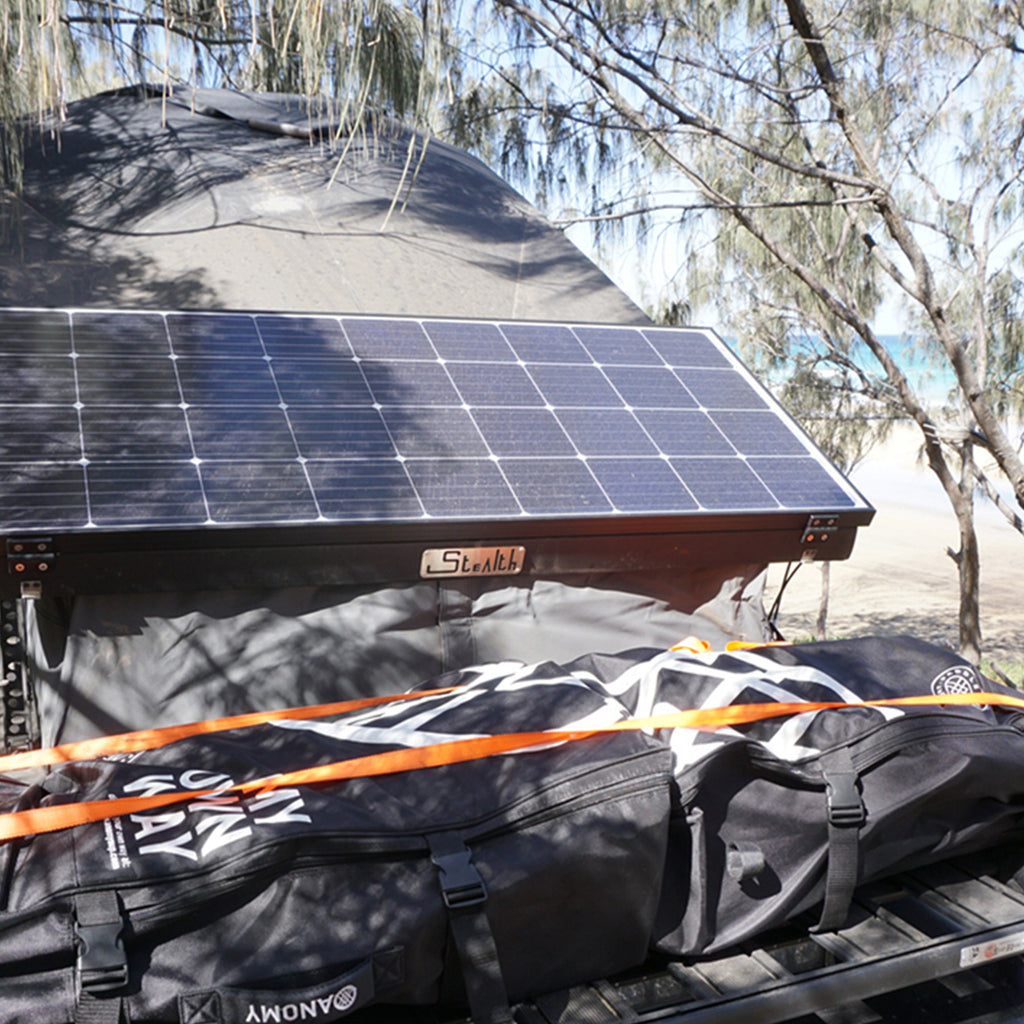

Designed for installation on 4WD, caravans, campers, motorhomes, RV’s, large boats & yachts.
Ideal for home & rural applications including 12V home surveillance systems, irrigation systems, electric fences, electric gates & off-grid shed power.
Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70756 – 10 Amp PWM Solar Charge Controller.
Features 900mm PV cables terminated to male & female TUV certified solar connectors.
| Specifications | |
| Power Tolerance | +3% |
| Maximum Power (Pmax) | 120Wp |
| Maximum Power Voltage (Vmp) | 19.0V |
| Maximum Power Current (Imp) | 6.32A |
| Rated Voltage | 12V |
| Open Circuit Voltage (Voc) | 22.5V |
| hort Circuit Current (Isc) | 6.97A |
| Operating Temperature | -40°C to +85°C |
| Product Application | Class A |
| Max System Voltage | 1000V DC |

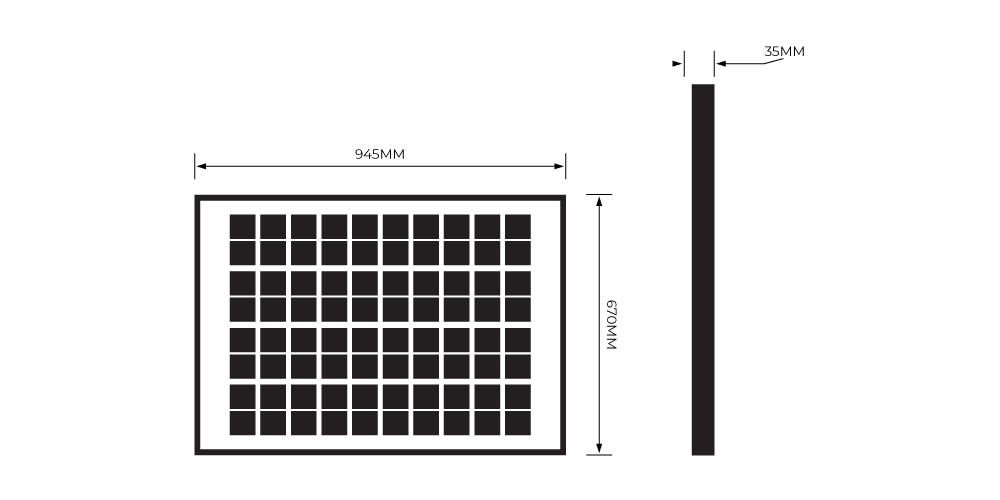

Dimensions & Weight:
- Dimensions (Height): 945mm
- Dimensions (Length): 670mm
- Dimensions (Depth): 35mm
- Panel Weight: 6.90Kg
Warranty & Guarantees:
- 10 Year Warranty on Manufacture & Build
- 25 Year Efficiency Guarantee
- National Warranty Program
