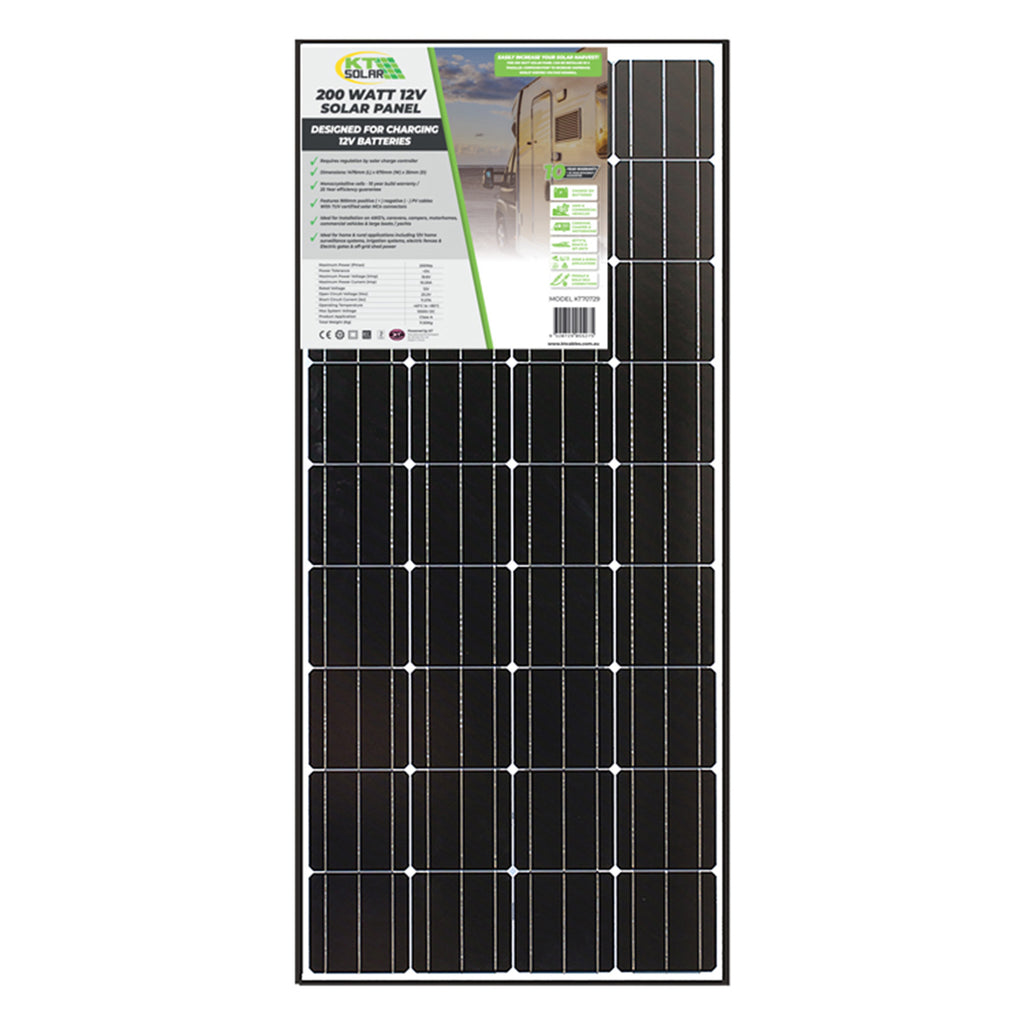

200 Watt, 12V Single Cell Monocrystalline Solar Panel

200 Watt, 12V Single Cell Monocrystalline Solar Panel

KT70729
$299.00 AUD
Taxes included. Shipping calculated at checkout.

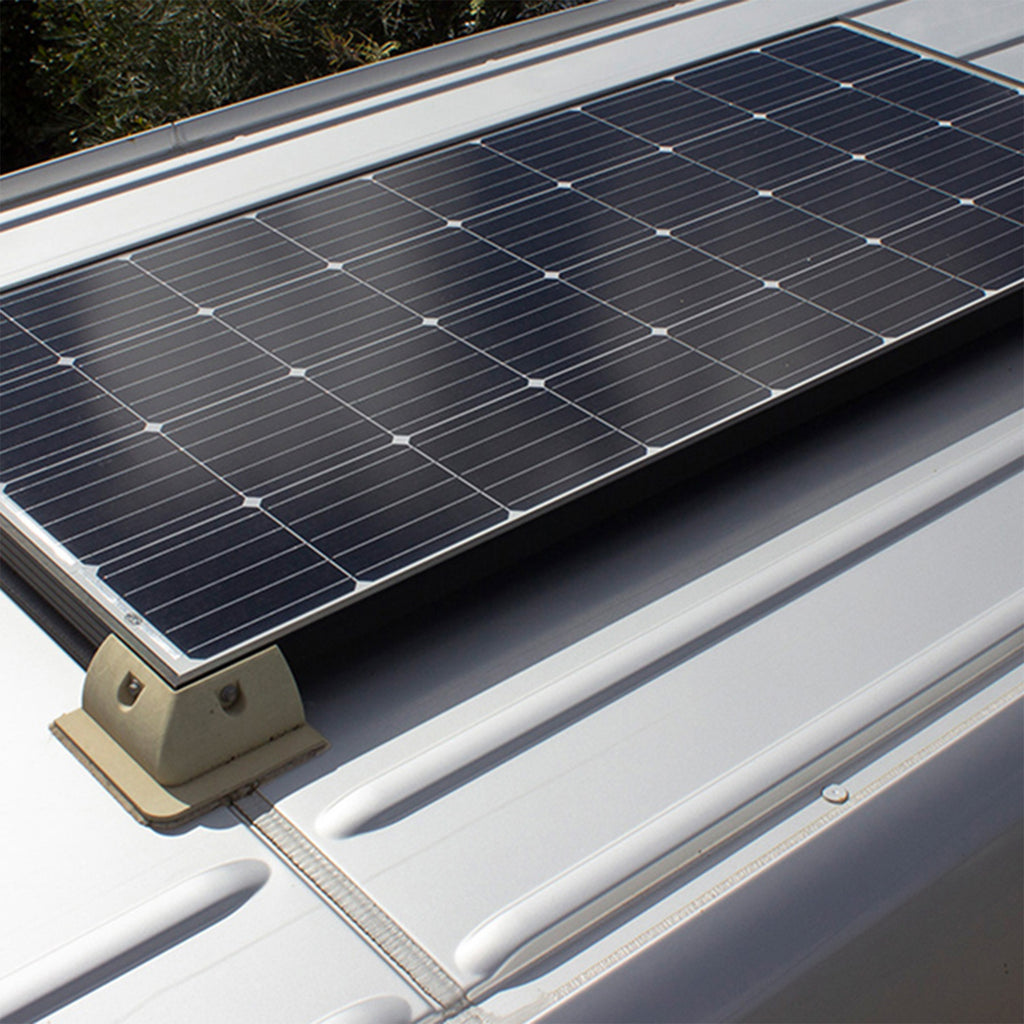

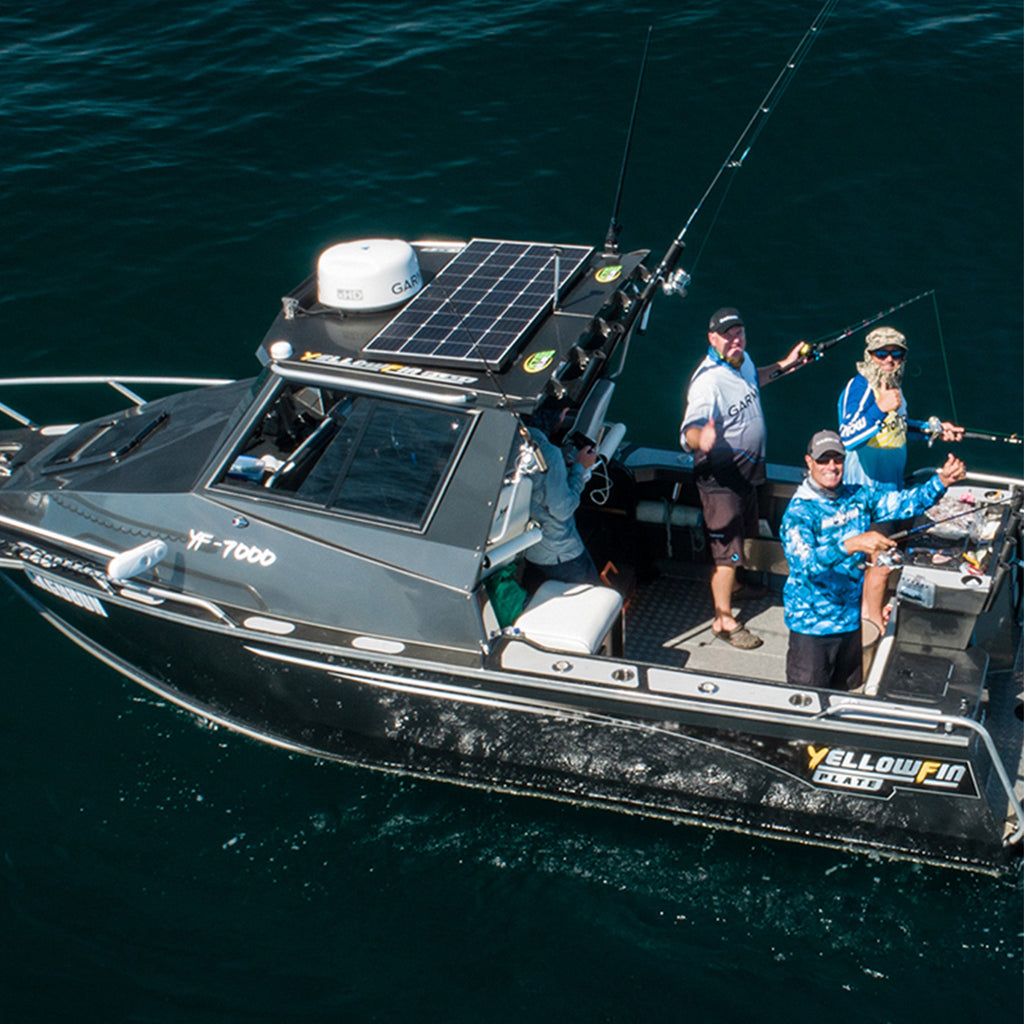

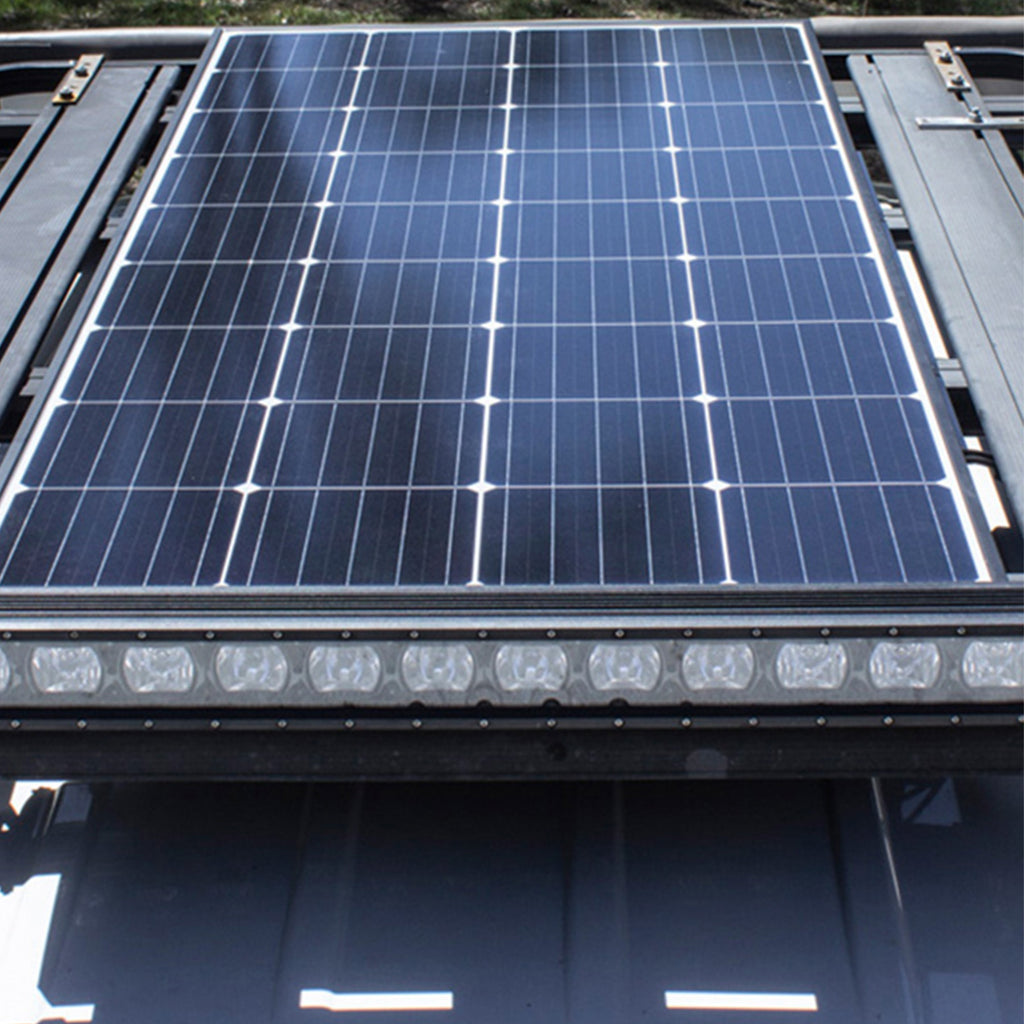

200W 12V solar panel is built predominantly for permanent installations on the roofs of 4WD, vans, caravans, campers, motorhomes, RV’s, commercial service vehicles, large boats & yachts, powering 12V sealed lead-acid batteries that power devices such as 12V fridges, air-compressors, lighting and other 12V devices.

This solar panel is also ideal for home & rural applications including 12V home surveillance systems, irrigation systems, electric fences, electric gates & off-grid shed power.

Requires regulations from solar charge controller.
Suited to KT Solar Controller Model No. KT70757 – 20 Amp PWM Solar Charge Controller.

Features 900mm PV cables terminated to male & female TUV certified solar connectors.

Features:

  • Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats & yachts
  • Ideal for home and rural applications including off-grid shed power
  • Requires regulation by solar charge controller
  • Direct connection to batteries with 900mm PV cables with positive (+) and negative (-) TUV certified connectors
Specifications
Power Tolerance+3%
Maximum Power (Pmax)200Wp
Maximum Power Voltage (Vmp)19.6V
Maximum Power Current (Imp)10.20A
Rated Voltage12V
Open Circuit Voltage (Voc)23.2V
Short Circuit Current (Isc)11.27A
Operating Temperature-40°C to +85°C
Product ApplicationClass A
Max System Voltage1000V DC

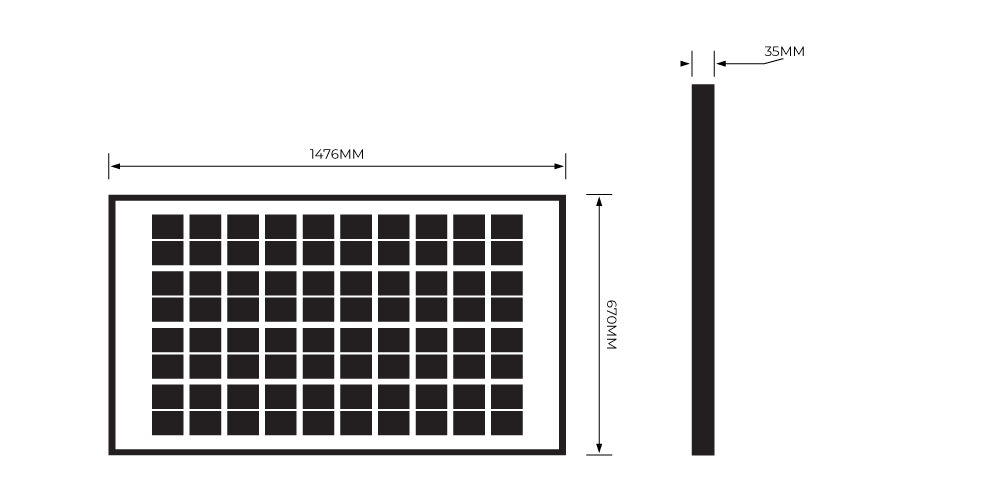

Dimensions & Weight:

  • Dimensions (Height): 1476mm
  • Dimensions (Length): 670mm
  • Dimensions (Depth): 40mm
  • Panel Weight: 11.50Kg

Warranty & Guarantees:

  • 10 Year Warranty on Manufacture & Build
  • 25 Year Efficiency Guarantee
  • National Warranty Program
